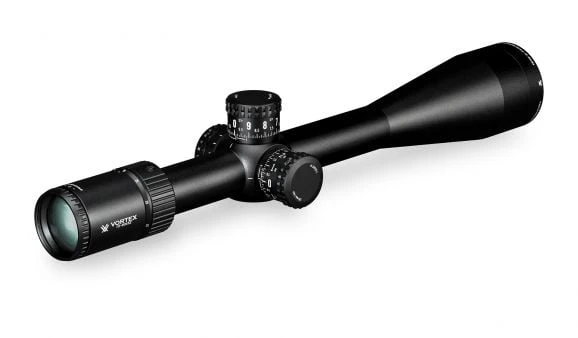

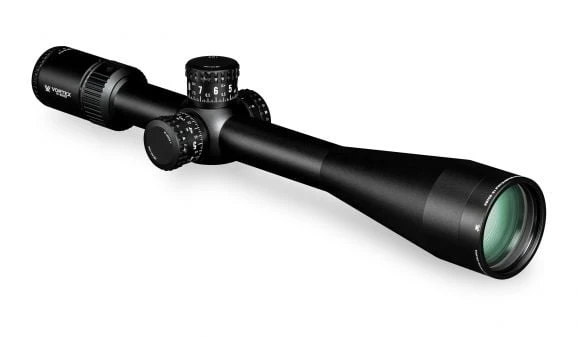

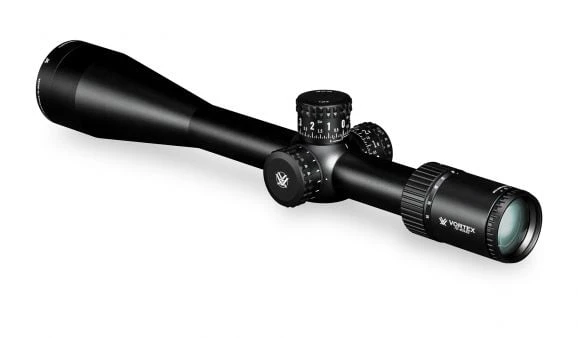

Vortex Golden Eagle HD 15-60X52 SCR-1 (MOA) Reticle

The Golden Eagle HD offers a unique set of features
specifically designed for F Class and Bench Rest competition shooters. The
15-60x magnification range, ultra-precise 1/8 MOA adjustments and extremely
fine, second focal plane reticle options help maximize precision on
known-distance long-range targets. All these features and more are complimented
by a top-tier optical system making for a super-sharp target picture down range
and the ability to read mirage and other wind indicators accurately. Equally
impressive, the Golden Eagle weighs in at a relatively light 29.5 ounces,
helping shooters adhere to strict competition weight limits. When you’re going
for gold in F Class or Bench Rest, go for the Golden Eagle to top your rifle.



UNLIMITED LIFETIME
WARRANTY

FULLY TRANSFERABLE

NO RECEIPT NEEDED



Golden Eagle HD 15-60×52-SCR-1 (MOA) Dimensions (in
inches)

Lengths
L1	L2	L3	L4	L5	L6
16.1	3.5	2.25	7.5	6.4	3.2



Heights
H1	H2
2.4	1.73

Dual use for Shooting Tactical / Hunting
US Patents 7,937,879 • 7,958,665 • 8,166,696

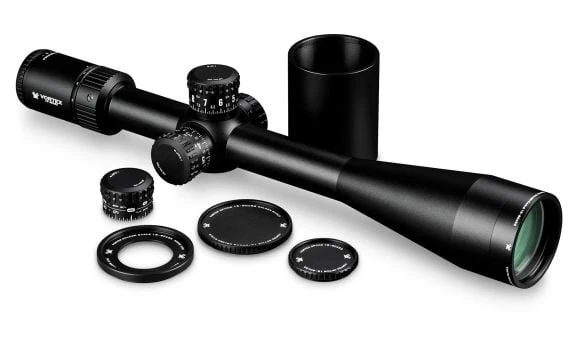

Included in the Box

• Lens
  cloth

• 2mm
  hex wrench

• 35mm
  ASR (Aperature Stop Ring)

• Extra
  windage turret with alternative laser markings

• Aluminum
  objective and eyepiece lens covers

• 3″
  sunshade

Magnification 15-60x

Objective Lens Diameter 52 mm

Eye Relief 3.9 inches

Field of View 6.3-1.7 ft/100 yds

Tube Size 30 mm

Turret Style Target

Adjustment Graduation 1/8 MOA

Travel Per Rotation 10 MOA

Max Elevation Adjustment 55 MOA

Max Windage Adjustment 45 MOA

Parallax Setting 20 to infinity

Length 16.1 inches

Weight 29.7 oz

Product Manual (PDF) Download



OPTICAL FEATURES

APO System Index-matched lenses correct color across the
entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and
brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers
the ultimate in resolution and color fidelity, resulting in high-definition
images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective
coatings on all air-to-glass surfaces provide maximum light transmission for
peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process
provides unparalleled coating durability and performance

Second Focal Plane Reticle Scale of reticle maintains the
same ideally-sized appearance. Listed reticle subtensions used for estimating
range, holdover and wind drift correction are accurate at the highest
magnification.



CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal
adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy
and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of
aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

Side Focus Adjustment located on left side of turret housing
is easily accessible from shooting position. Provides optimal image focus and
parallax removal.



INTERNAL MECHANISM
DESIGN FEATURES

Extra-Fine Resolution Turret The resolute increment of
adjustment of just 0.125 MOA per click allows competitive shooters to make very
small adjustments to fine tune their shots.



CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Optional 10 MOA Windage Turret Included accessory turret
allows for dialing a full 10 MOA revolution of windage before the scale
repeats.

ASR (Aperature Stop Ring) Broadens the depth of focus
allowing the shooter to more easily observe down range mirage and other wind
indicators while keeping the target in focus.

Aluminum Lens Caps Premium aluminum screw on eyepiece and
objective lens covers included.



RETICLE





SCR-1 (MOA)

The SCR-1 (Simple Crosshair Reticle) is the exact opposite
of a “busy” reticle. The only thing that needs your attention is a traditional
set of fine crosshairs that subtend 0.016 MOA at 40X.

Subtension detail for Golden Eagle HD 15-60×52 riflescope with
SCR-1 MOA reticle.
